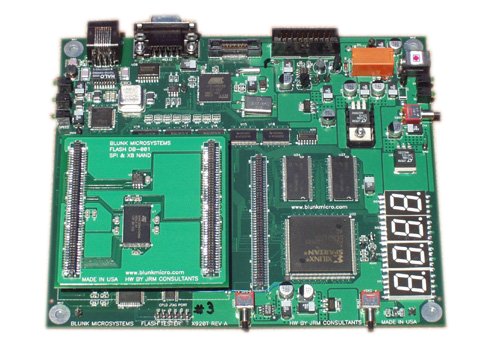

X920T Board
List of Connectors/LEDs
- 10/100 BaseT Ethernet Port
- COM Port (RS-232/DB9 Connector)
- Trace Port
- JTAG/ICE (In Circuit Emulation)
- Ethernet Status LEDs
- Stackable Daughter boards (shown with stock DB-001 Flash Daughter board)
- +9VDC Power
- Power Status LEDs
- Power Cycle Switch
- Numeric Display
- JTAG/Xilinx Port
- User Defined Switch
- Reset Switch
